70
km
Power assistance
1.75
in
Safety tires
24
wheel

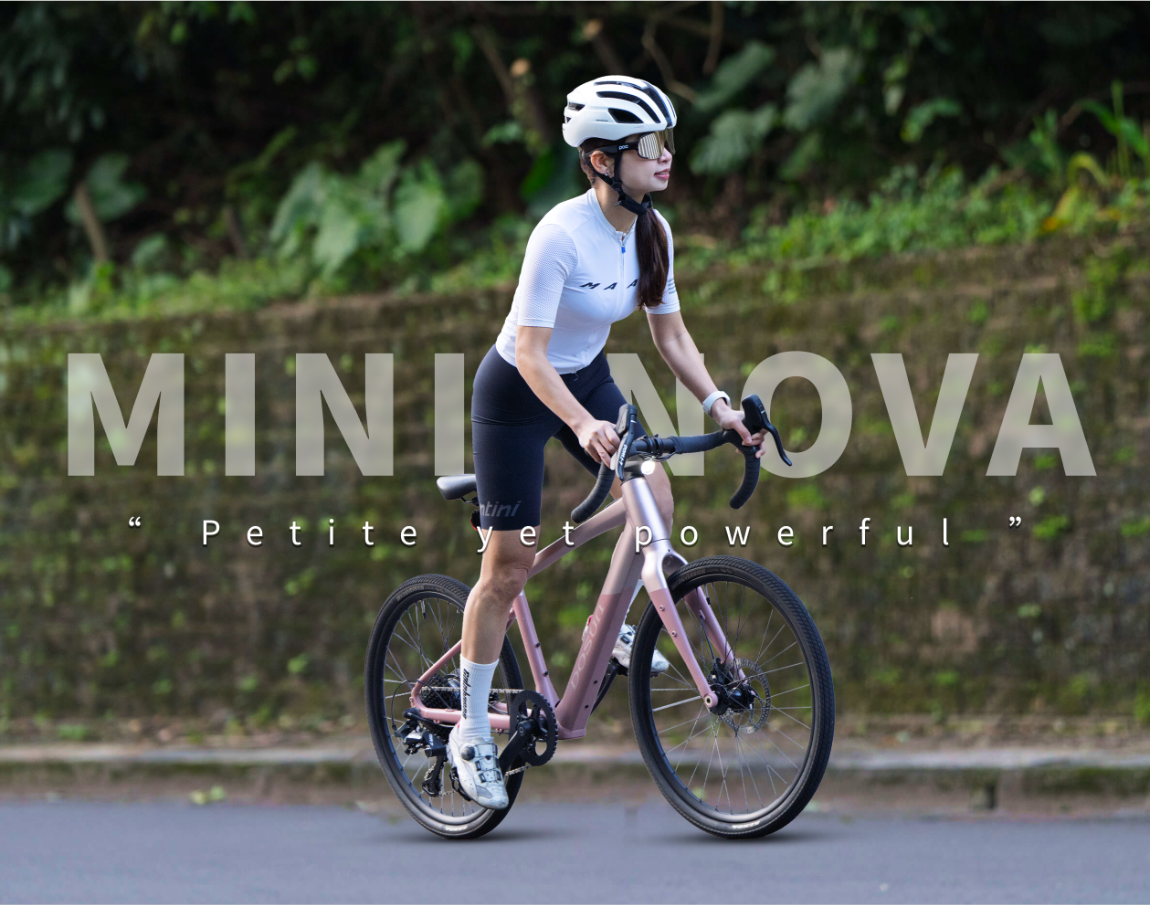

Petite size
A thrilling cycling adventure
Designed so even petite beginners can embark on
an exciting cycling adventure.
an exciting cycling adventure.
Tailored for riders 140–160 cm
｜Compact frame｜All-terrain wide tires｜
｜16 kg lightweight aluminum｜Hidden cable design｜
｜16 kg lightweight aluminum｜Hidden cable design｜
Optimized through precise frame geometry and design
to enhance performance and pacing for petite riders.
｜Low-step frame｜24” wheels｜Lightweight 16 kg｜

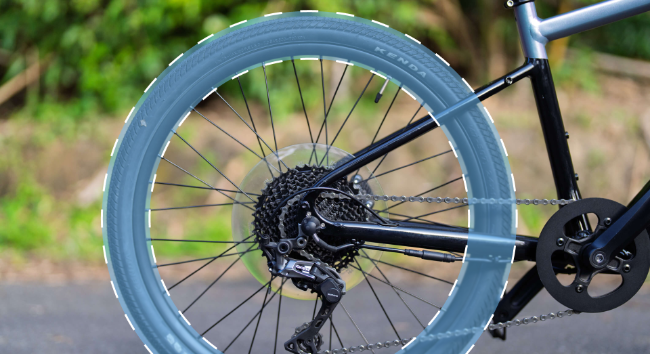

From tire width to drivetrain, every detail is built for diverse terrains — ensuring smooth, confident rides on any mixed surface.
Ride free, without distractions.
- Safe design for petite and beginner riders. -
Custom-tailored frame geometry
Exclusive design makes mounting effortless and keeps control and comfort optimized for long rides.

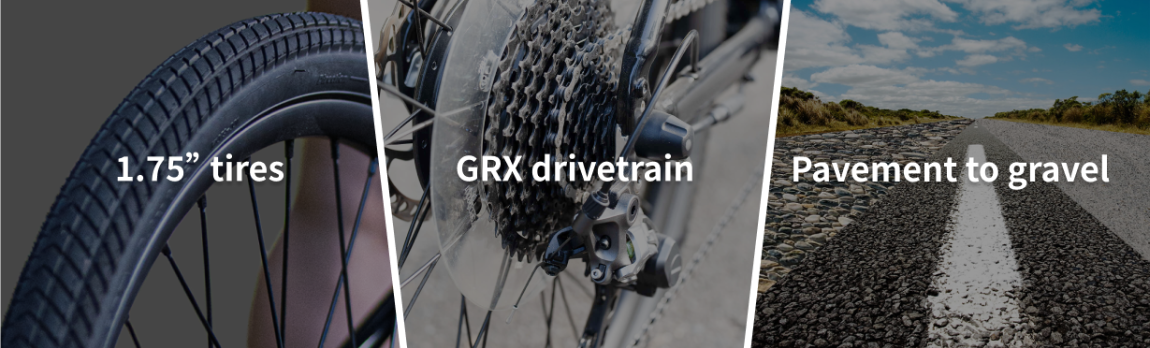

1.75” versatile performance tires
BMX-grade tires built for pavement, gravel, and loose surfaces — offering superior grip and control for safer rides.

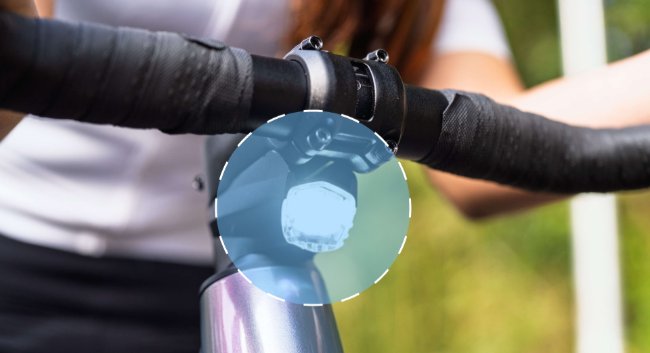

200 lm integrated headlight
Built-in DOSUN front light with intuitive handlebar control — fully equipped for safe night rides, no extra purchase needed.
- Premium design, minimalist cockpit. -

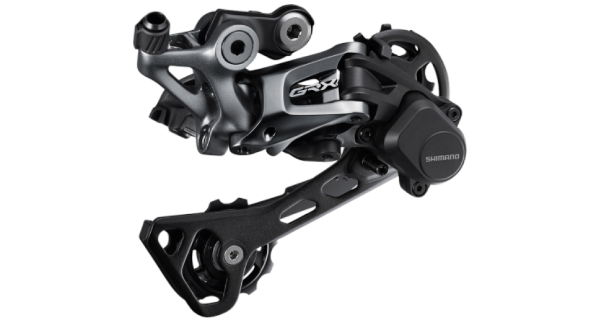

GRX drivetrain built for adventure
Blending road efficiency with gravel stability for optimal performance on climbs, rough paths, or long rides.

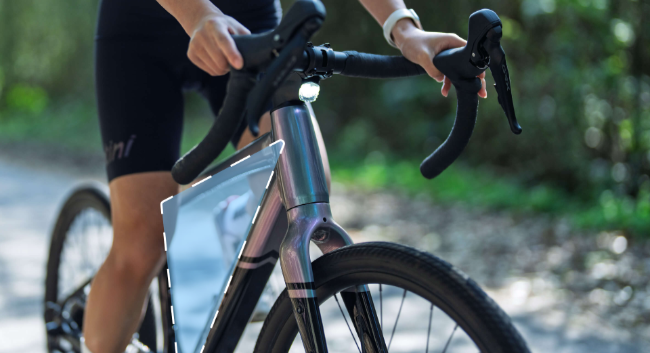

Fully integrated frame design
Battery, cables, display, and controls are seamlessly built in for a clean, streamlined look.
Integrated top-tube display
Premium, waterproof design showing time, speed, and distance.

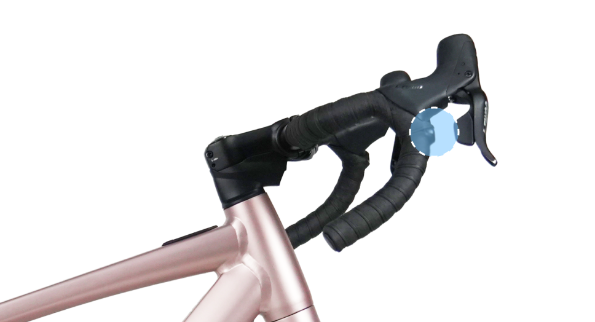

Hidden integrated controls
Built into the handlebar for intuitive light and assist adjustments.
- Intuitive design for effortless versatility. -

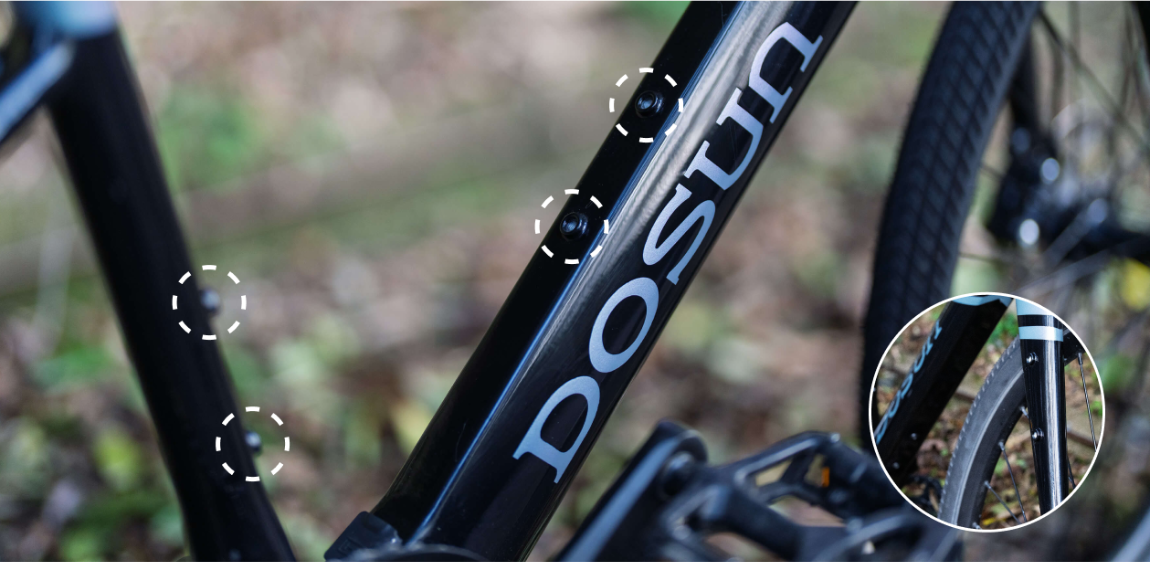

Multi-mount frame points
______________________________________________________________________________________
Fork, down tube, and rack mounts for versatile riding setups.

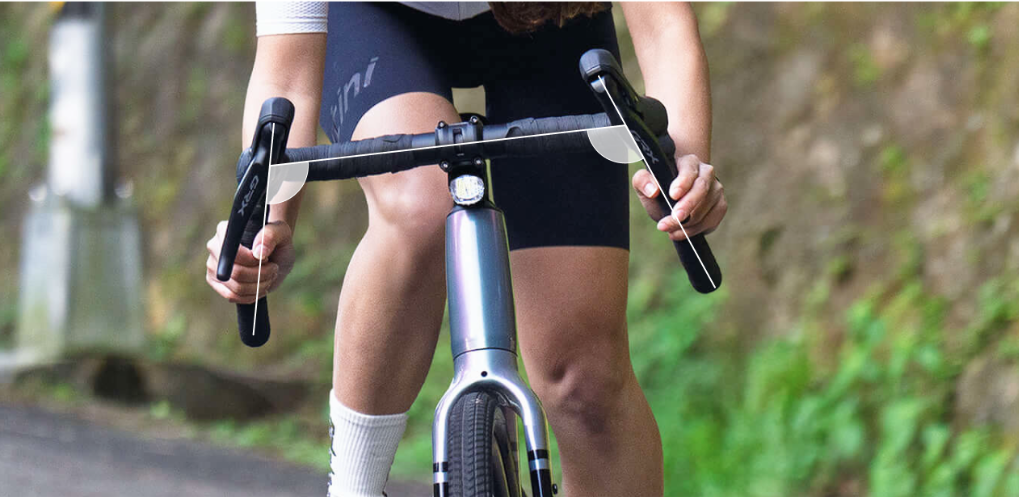

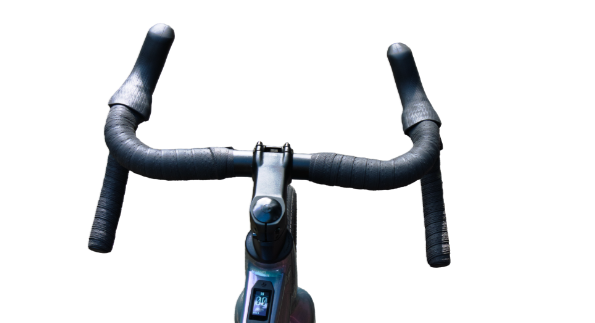

Flared gravel handlebar
______________________________________________________________________________________
Offers natural grip, better comfort, and control.
Premium cosmic finish
______________________________________________________________________________________
Special liquid coating for vibrant, long-lasting color.
Specification
| Basic Information | |||

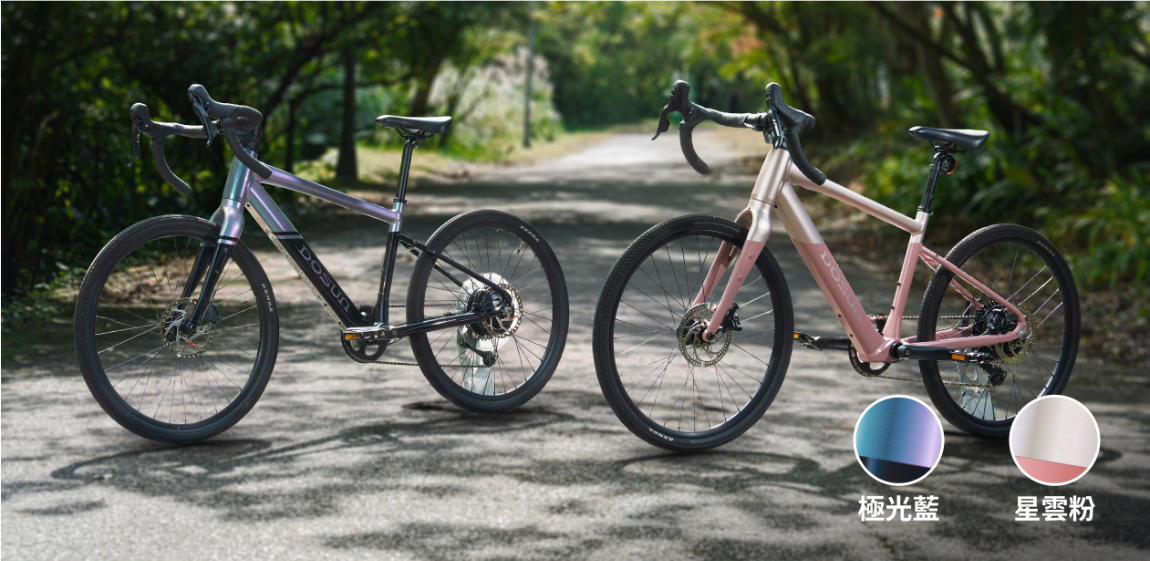

| Colors | Stardust Pink / Cosmic Blue | ||
| Size / Rider Height | 24” / 138–158 cm | ||
| Type | E-Assist Bike (25 km/h) | ||
| Weight | 16 kg (including battery) | ||
| |
Frame | Lightweight aluminum frame with integrated battery. |
| Safety Features | |||
|
Front Light
|
DOSUN HS375K integrated headlight | ||
| Brake System | SHIMANO GRX hydraulic disc system | ||
| Brake Rotor | SHIMANO 160 mm |
| Drivetrain | |||
| Front Fork | Lightweight aluminum | ||
| Crankset | SHIMANO CN-HG601-11 | ||
| Wheel Size | 24” | ||
| Tires | 24 x 1.75 | ||
| Rear Derailleur | SHIMANO GRX 1×11 | ||
| Cassette | SUNRACE 11–42T |
| Electrical System | |||
| Display Panel | 1.3” OLED (speed, assist level, trip, battery) | ||
| Assist Levels | 5-stage adjustable system | ||
| Motor | 36V 250W 40Nm hub motor | ||
| Battery | 36V / 6.8Ah / 244.8Wh | ||
| Charger | 36V / 2A | ||
| Charging Time | 3.5–4 hrs (0–100%) | ||
| Estimated Range | Approx. 70 km (Distance varies with use.) | ||
| Special Features | Auto power-off / Walk assist mode |
| Product Specifications (EN) | ||
Basic Information |
Color | Stardust Pink ｜ Cosmic Blue |
| Recommended Height | 24” / 138–158 cm | |
| Type | Electric Assist Bicycle (Speed Limit 25km/h) | |
| Weight | 16 kg (including battery) | |
| Frame |
internal cable routing |
|
| Safety Design | Front Light | DOSUN HS375K integrated headlight |
| Brake | SHIMANO GRX hydraulic disc system | |
| Brake Disc | SHIMANO 160 mm | |
Drivetrain |
Front Fork | Lightweight aluminum |
| Chain | SHIMANO CN-HG601-11 | |
| Rim | 24” × 20C (14G×32H front / 13G×36H rear) | |
| Tire | 24 × 1.75 | |
| Rear Derailleur | SHIMANO GRX 11-speed | |
| Cassette | SUNRACE 11–42T | |
| Electronic Control Information | Dashboard |
1.3” OLED — speed / assist / distance / battery |
| Gear Levels | 5-stage adjustable assist | |
| Motor | DOSUN 36V 250W 40Nm hub motor |
|
| Battery | CELXPERT 36V / 6.8Ah / 244.8Wh | |
| Charger | 36V 2A | |
| Charging Time0%-100% | 3.5-4 hours | |
| Maximum Range on a Full Charge | Approximately 70 km (Riding distance may vary based on actual conditions) |
|
| Special Features | Power-saving automatic shutdown feature Walk-assist mode |
|
The riding distance is for reference only. The data above is based on tests conducted with an 80 kg rider on flat ground at maximum speed. The total vehicle weight limit is 125 kg, with a rear rack weight limit of 18 kg. (Actual riding distance may vary depending on the rider's weight, road conditions, and environment.)
➤ Note 2:
For reference only. Specifications and equipment are based on the actual models sold in Taiwan. The company reserves the right to change or discontinue specifications and equipment.
➤ Note 3:
The company reserves the right to modify the product information published in the manual and on the website without prior notice (including equipment, specifications, weight, color, materials, etc.). Please refer to the actual product.
